MB510 Differential Pressure Transmitter
key word:
Hotline:
Description
Features
· 316L stainless steel construction,compact size,easy installation;
· Laser welding,full-sealed construction;Protection IP67;
· High precision,wider temperature compensate range;
· Anti-impact,anti-vibration,anti-overloading;
· Temperature compensation and aging,stable performance;
· Various outline structures,accepting custom design
Introduction
MB510 Differential Pressure Transmitter adopts piezoresistive OEM differential pressure sensor as sensing element inside.The measured pressure worked on two diaphragms of the sensing elements,through amplifier circuit,the differ- ential pressure can be transformed into electrical signal.MB510 has various output for choice.(millivolt,standard voltage,current,frequency etc.).
Stainless steel housing decides its strong anti-corrosion ability.Two M20*1.5(or customized connector dimention) pressure connectors can be installed on the measuring tube directly(or get a connection through a connecting tube).
Widely used in differential pressure measurement of petroleum,chemi-industry,power station,hydrology,navigation, aviation,HVAC etc.
Specification
|
Pressure Type |
Differential Pressure |
|
Medium |
Liquid, gas, vapor, which are compatible with SUS304 |
|
Pressure range(MPa) |
0~...0.7 or customized |
|
Pressure range (bar) |
0~...700 or customized |
|
Pressure range (psi) |
0~...100 or customized |
|
Overload range |
200%FS |
|
Bursting pressure |
300%FS |
|
Power Supply |
(9～36)VDC |
|
Output signal |
(0～5)V, (1～5)V, (4～20)mA |
|
Vibration |
10～500Hz 25g |
|
Shock resistance |
50g 11ms |
|
Accuracy |
±0.5%FS(typ.) @25℃ |
|
Zero temp.drift |
±0.03%FS/℃ |
|
FS temp.drift |
±0.03%FS/℃ |
|
Long-term stability |
±0.2%FS/Y |
|
Insulation resistance |
250 MΩ/250V,100MΩ/250V |
|
Medium temp. |
(-40～125)℃ |
|
Ambient temp. |
(-40～85)℃ |
|
Storage temp. |
(-40～125)℃ |
|
Compensated temp |
(-10～80)℃ |
|
Housing |
SUS304 |
|
Diaphragm |
SS316L |
|
O-ring |
Viton |
|
Protection |
IP67 |

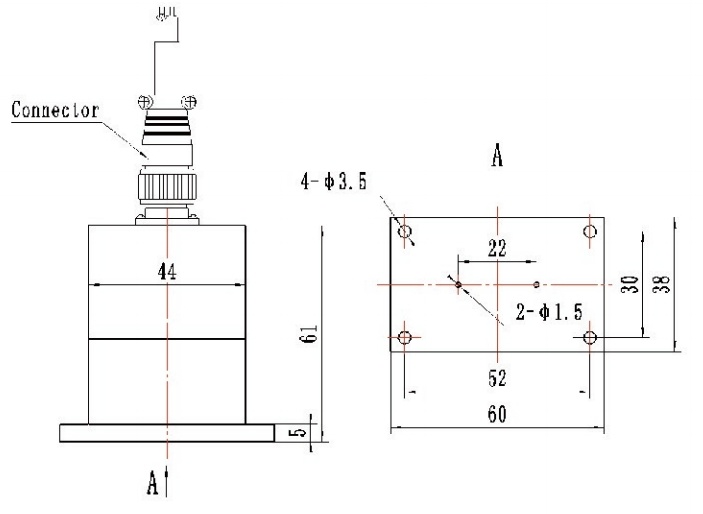

Outline structure(Unit:mm)
 |
 |
Electrical connection
|
Color |
2-wires |
3-wires |
|
Red |
+V |
+V |
|
Yellow |
OV/+OUT |
GND |
|
Green |
Null |
+OUT |

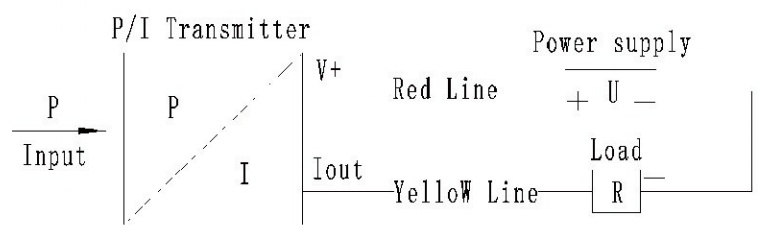

| 2-wires,4~20mA output | 3-wires,0~5V,1~5V output |
 |
 |
