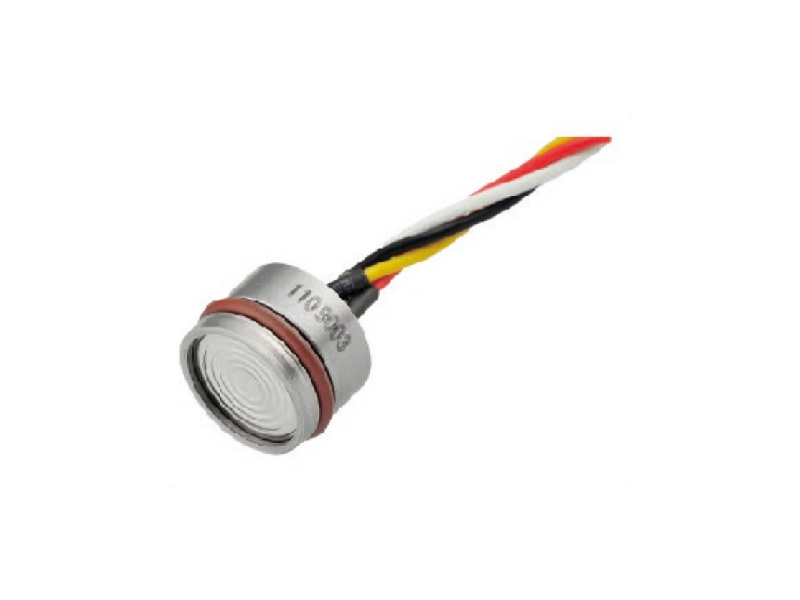

BS12 Series Piezoresistive Silicon Pressure Sensor
key word:
Hotline:
Description
EFFICIENT,HIGH- ACCRACY AND HIGH STABILITY FOR OEM
BS12 series piezoresistive pressure transducers adopt high-sensi-tivity piezoresistive silicon chip inside for pressure sensing.The chip is protected against ambient influences by a stainless steelhousing sealed with a concentrically corrugated diaphragm.The housing is filled with silicone oil for the transfer the pressure fromdiaphragm to the sensing component. Exchanging the pressure intoMV electrical output signal.
Electric Performance
|
Power supply |
1.5mA(typ.) |
|
Electric connection |
Kovar pin or 100mm silicon rubber flexible wires |
|
Common mode voltage output |
50%of input (typ.) |
|
Input impedance |
2kΩ-6kΩ |
|
Output impedance |
2kΩ-6kΩ |
|
Insulation resistor |
250MΩ,250VDC |
|
Overpressure |
<6MPa,2 times FS; (6~60)MPa,1.5times FS;Differential pressure or Low pressure range 1.3times FS |
Construction
|
Diaphragm |
stainless steel 316L |
|
Housing |
stainless steel 316L |
|
Pin |
Kovar |
|
O-ring |
Viton |
|
Net weight |
~30g(general type) |
Basic Specifcation
|
Item |
Min |
Typ. |
Max. |
Units |
|
Linearity |
|
±0.15 |
±0.25 |
%FS,BFSL |
|
Repeatability |
|
±0.1 |
|
%FS |
|
Hysteresis |
|
±0.05 |
±0.1 |
%FS |
|
Zero output |
|
±2 |
|
mVDC |
|
FS output |
60 |
|
|
mVDC |
|
Zero thermal error |
|
±0.02 |
|
%FS/C |
|
FS thermal error |
|
±0.03 |
|
%FS/℃ |
|
≤70Kpa FS thermal error |
|
±0.05 |
|
%FS/℃ |
|
Compensated temp.range |
-10 |
~ |
70 |
℃ |
|
≤70Kpa Compensated temp.range |
0 |
~ |
70 |
℃ |
|
Storage temp.range |
-20 |
~ |
65 |
℃ |
|
Stability |
|
±0.2 |
±0.3 |
%FS/year |
|
*testing at basic condition,G:Gauge;A:Absolute;S:Sealed gauge |
||||
Basic Condition
|
Media temperature |
(25±1)℃ |
|
Environment temperature |
(25±1)℃ |
|
Shock |
0.1g(1m/s/s)Max |
|
Humidity |
(50%±10%)RH |
|
Local air pressure |
(86～106)kPa |
|
Power supply |
(1.5±0.0015)MADC |
Electric Connection
|
Pin |
Connection |
|
Red |
IN+ |
|
Yellow |
OUT+ |
|
Black,Green |
IN |
|
White |
OUT- |
Environment Condition
|
Position |
Deviate 90°from any orientation,zero change ≤0.05%FS |
|
Impact |
100g,11ms |
|
Media compatibility |
The gas or liquid which is compatible with construction material and Viton |
|
Model |

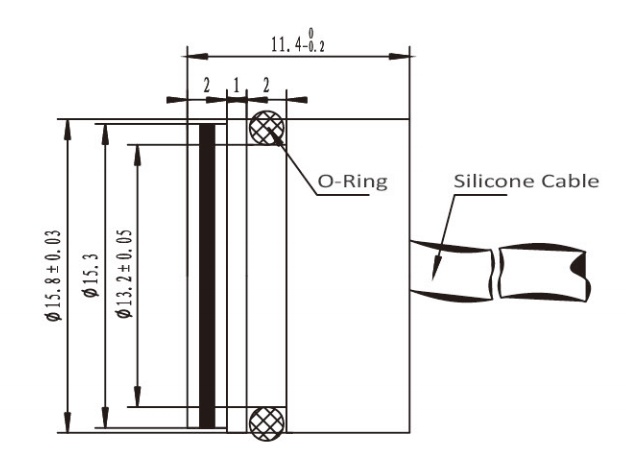

Image | Drawing (Unit:mm) |

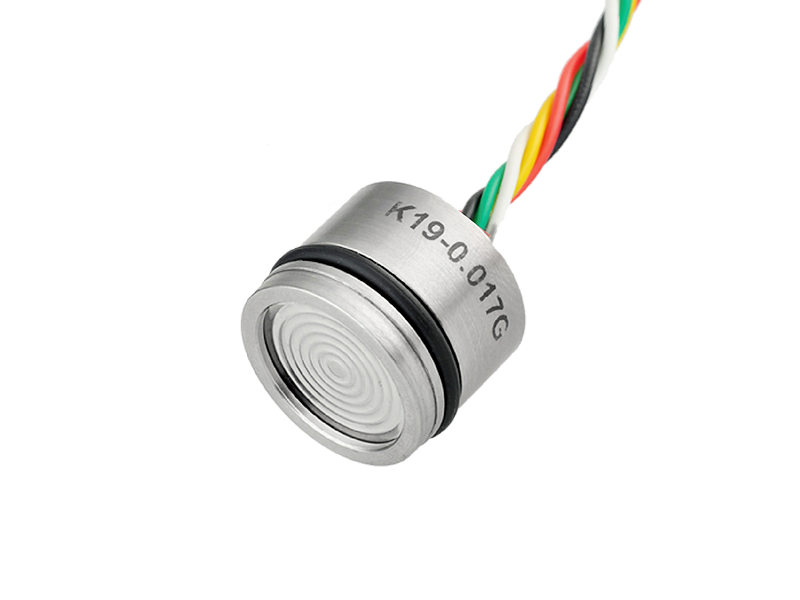

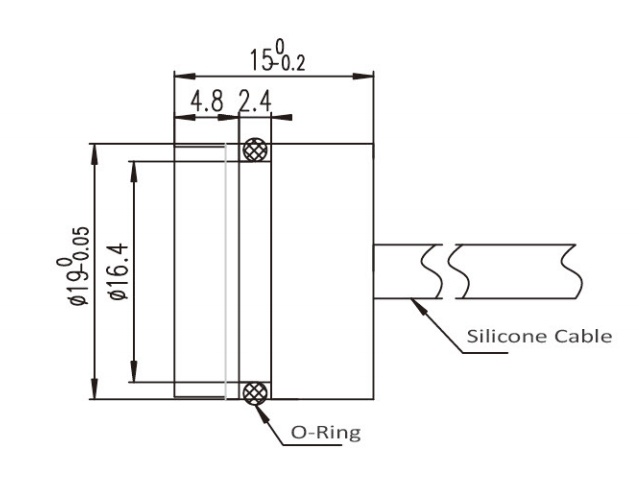

| C19 Series |  |
 |
| C16 Series |  |
 |

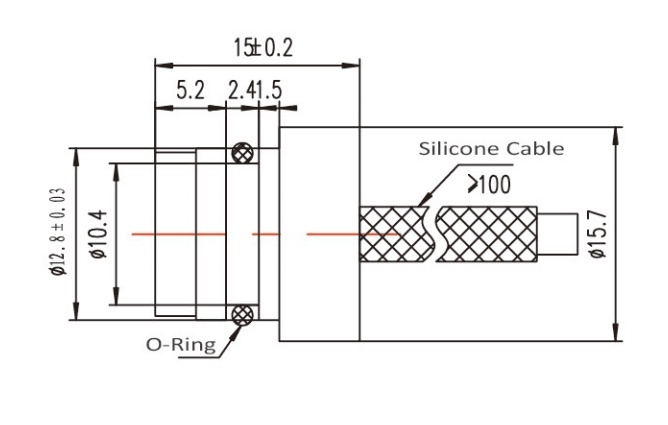

| C13 Series |  |
 |
