Wireless MNS800 VT Temperature and Vibration Sensor
key word:
Hotline:
Description
1. Product Overview
The wireless temperature and vibration sensor integrates the acquisition of acceleration, velocity and temperature. It utilizes the Zigbee transmission protocol to achieve wireless data collection, transmission, and monitoring. Embedded with certain intelligent diagnostic algorithms, it can predict and provide early warnings for equipment failures. Suitable for monitoring industrial equipment, it is a powerful tool for equipment maintenance in industrial fields such as petrochemicals, electricity, and steel plants.
2. Product Features
2.1. Product Dimensions
Product Size: φ49mm*95.5mm (Figure 1).
Materials of Enclosure: Metal Parts: 304 Stainless Steel(Base);
Plastic Parts: Glass Fiber PC(Enclosure).
Figure 1: Product Appearance and Sizes Diagram
2.2. Instructions for Electrical Connection
 |
 |
|
Figure 2: Schematic Diagram of Switch and LED |
Figure3: Schematic Diagram of Electrical Connection |
Open the enclosure, then you will see the switch and LED (Figure 2):
Switch : It employs a mechanical switch. Pushing up the switch can open it, and pushing down the switch can close it.
LED : When the switch is turned on, the indicator light will illuminate in green, indicating it is in normal open condition.

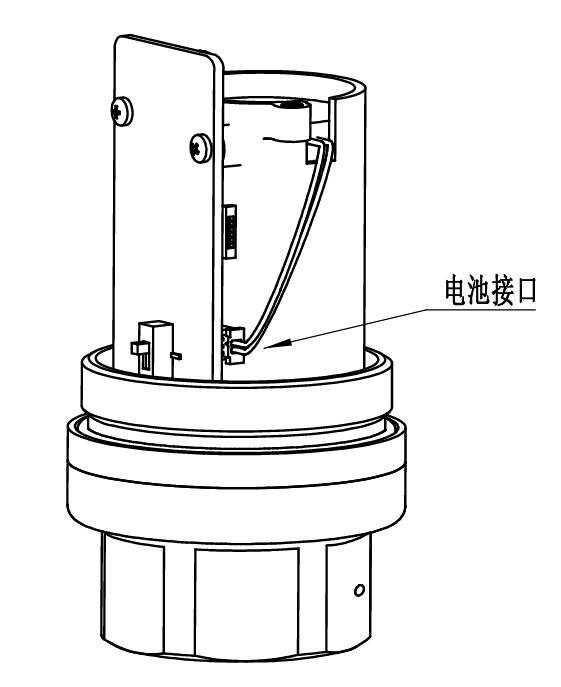

Electrical Connection (Figure 3): The 2-pin connector of the battery is inserted into the power port on the PCB board.
3. Technical Specifications
|
Acceleration |
Number of Axles |
3 axes |
|
Sensing Unit |
Piezoelectric Ceramic or MEMS |
|
|
Amplitude Range |
±50 g peak for Z-axis or ±16 g peak for X- and Y-axes |
|
|
Measurement Accuracy |
±5% (at 160 Hz) for Z-, X-, and Y-axes |
|
|
Lateral Sensitivity (Typical Value) |
7% (at 100 Hz) |
|
|
Data Acquisition |
Acceleration Frequency Range |
Z-axis: 0.1 Hz (±3dB) to 10 kHz (±3dB) |
|
|
X- and Y-axes: 0.5 Hz (±3dB) to 1.6 kHz (±3dB) |
|
|
Acceleration Amplitude Range |
± 50 g |
|
|
ADC Accuracy |
24-bit ADC |
|
|
Sampling Rate |
1KHz to 50KHz |
|
|
Sampling Length |
2KB to 2MB |
|
|
Measurement Interval |
10-minute indicators and 2-hour time-domain waveforms |
|
|
Output Mode |
Total value, RMS (Root Mean Square) value, and spectral time-domain waveforms |
|
|
Temperature Acquisition |
Measurement Range |
-40°C to 120°C |
|
Accuracy |
±1℃ |
|
|
Wireless Communication |
Network Topology |
Star topology |
|
|
Radio Frequency Standard |
IEEE 802.15.4 |
|
|
Wireless Frequency Range |
2.4 GHz ISM band |
|
|
Encryption/Security |
128-bit AES encrypted transmission |
|
|
Radio Frequency Output Power (Peak) |
5dbm(maximum) |
|
|
Wireless Communication Distance |
250米meters line-of-sight unobstructed range (actual range depends on obstacles, gateway antenna type and orientation, selection of measurement points, etc.) |
|
Working Conditions |
Operating Temperature |
-40°C to 70°C |
