GY02A Diffuse Reflection Type in Change Photoelectric Sensor
key word:
Hotline:
Description
Introduction
The previous diffuse reflection type photoelectric sensors have limitationssuch as "short detection distance", "false detection due to different work-piece colors", "too large fuselage, limited installation" and so on. GY02A cansolve these problems, allowing the use of reflective photoelectric sensors toexpand the range of applications, such as "multi-variety handling lines withdifferent colors and shapes of objects" and "assembly lines with limitedinstallation space for sensors"

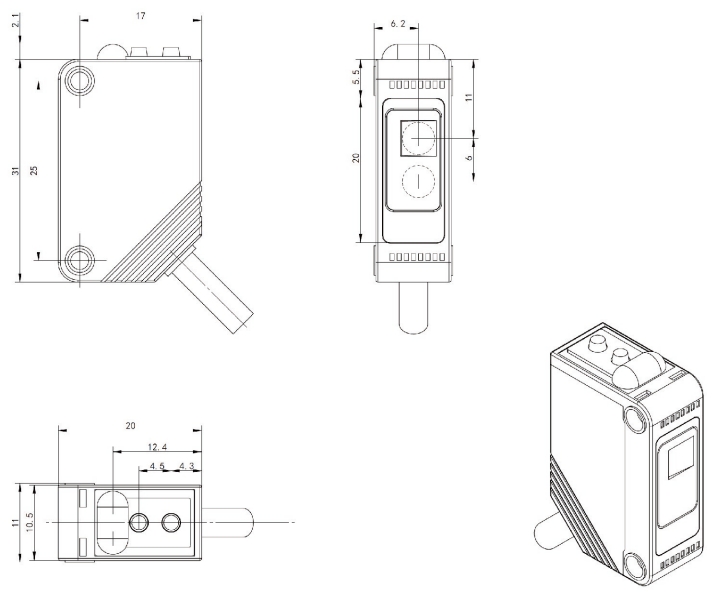

Outline structure:(Unit:mm)
Specification
|
Basic parameter |
|
|
Detection distance |
0.05-1m @5%reflectivity |
|
|
0.05-2m @30%reflectivity |
|
Ranging frequency |
1000Hz |
|
Weight |
≈40g |
|
Power consumption |
<0.6W |
|
Pilot lamp |
Power indicator(green),Setting/Action indicator(orange) |
|
Absolute precision |
±40mm |
|
Repeat accuracy |
±5mm |
|
Output pattern |
PNP/NPN/TTL(customizable) |
|
Output action |
NO/NC can be switched,the switching mode is the length of the key time |
|
Output mode |
nstant/delay response mode.The switch mode is key duration |
|
Maximum load current |
100mA |
|
Maximum load voltage |
30V DC |
|
Residual voltage |
<1V |
|
Light source |
|
|
Laser light source |
Red laser diode |
|
Beam type |
Red visible dot laser |
|
Wave length |
650nm |
|
Laser grade |
Class 2 |
|
Electrical parameter |
|
|
Operating voltage |
9~30V DC |
|
Switching quantity response time |
1ms(50ms can be set) |
|
Protection circuit |
Power reverse protection,output short-circuit protection,output reverse protection |
|
EMC protection |
Electrostatic protection,EFT protection,500V surge protection |
|
Environmental condition |
|
|
Protective structure |
IP64 |
|
Resistance to ambient light |
<4000Lux |
|
Operating ambient temperature |
-20℃~+55℃ |
|
Storage ambient temperature |
-40℃~+70℃ |
|
Mechanical parameter |
|
|
Length |
33mm |
|
Breadth |
20mm |
|
Height |
11mm |
|
Shell |
PC+ABS |
|
Lens |
PMMA |
|
Cable |
0.2mm 3-core PVC cable,2m long(cable length can be customized) |
