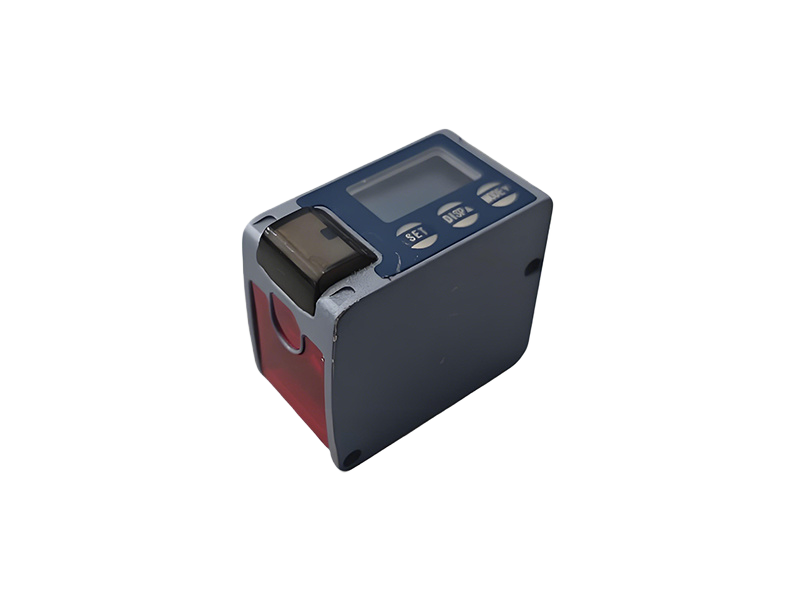

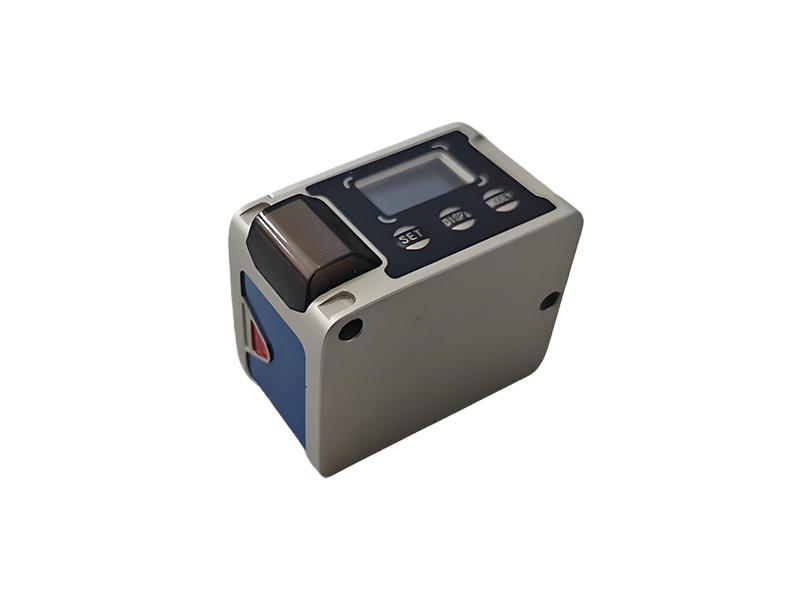

GY10A Diffuse Reflection Type in Change Photoelectric Sensor
key word:
Hotline:
Description
Introduction
This is a reflective sensor that can detect a variety of artifacts and is notrestricted by the installation site. With TOF and self-sensing lC, it can beinstalled in a variety of scenarios. In addition, the detection performance ismore reliable and easier to use. lt is a new upgrade of the universal lasersensor.
Features
Ultra-high detection performance
Reduce sensor assembly time to ultra-short
Setting for ultra-long distance away from the production line
Specification
|
Item name |
Technical parameters |
||
|
Type classification |
GY10A |
GY10A-M |
GY10A-485 |
|
Laser light source |
Laser diode 905nm,≤0.4mW |
||
|
Laser rating |
Class 1 |
||
|
Indicating laser |
Laser diode 650nm,≤5mW |
||
|
Ranging frequency |
2kHz |
2kHz |
20Hz-5kHz |
|
Working distance |
10m @10%reflectivity,0.05m-10m @80%reflectivity,The reflectance can be extended upto 50m |
||
|
Response time |
1ms |
||
|
Absolute precision |
±100mm |
||
|
Repeat accuracy |
±5mm |
||
|
Operating voltage |
9-30V |
18-30V |
9-30V |
|
Interfaces |
PNP、NPN |
4-20mA |
RS-485 |
|
Load limit |
≤100mA |
≤500Ω@24V |
GY10A-485 |
|
Power consumption |
<2W |
||
|
Weight |
≈140g |
||
|
Dimensions |
52mm x44mm x31mm |
||
|
Working environment temperature |
-20℃-+50℃ |
||
|
Storage ambient temperature |
40℃-+80℃ |
||
|
Resistance to ambient light |
<10000lux |
||

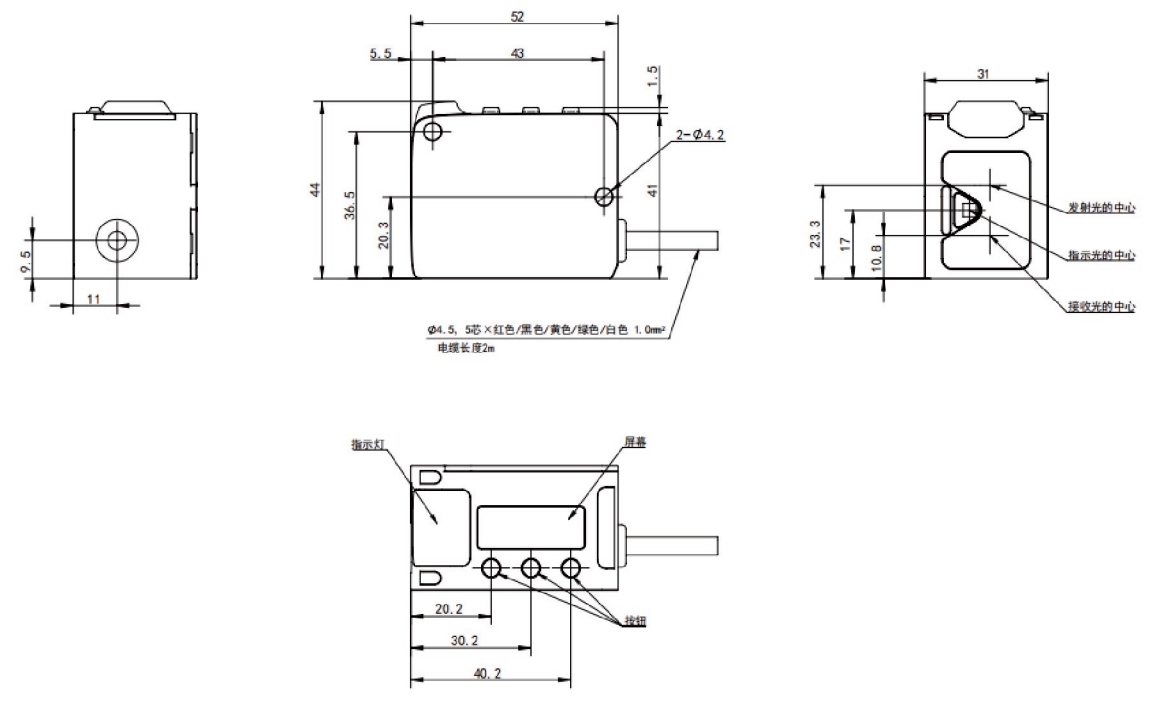

Outline structure(Unit:mm)
Specification
|
Model number |
GY10A |
GY10A-M |
GY10A-485 |
|
Wave length |
905nm |
||
|
Laser power |
<0.4mW |
||
|
Pulse width |
<2ns |
||
|
Laser grade |
Class 1 |
||
