Wireless GNS800 P Pressure Sensor

1. Product Overview

The wireless pressure sensor achieves pressure acquisition and utilizes the LoraWAN transmission protocol to realize wireless data collection, transmission, and monitoring. It is embedded with certain intelligent diagnostic algorithms, enabling self-diagnosis. This sensor is suitable for pressure monitoring of industrial equipment.

2. Product Features

2.1. Product Dimensions

Product Size: φ50mm*108.5mm (Figure 1).

Materials of Enclosure: Metal Parts: 304 Stainless Steel(inlet pressure head);

Plastic Parts: PC(Orange Enclosure).

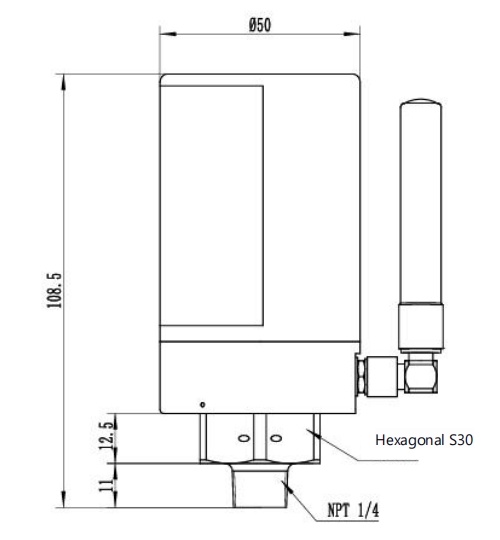

Figure 1: Product Appearance and Sizes Diagram

2.2. Instructions for Electrical Connection

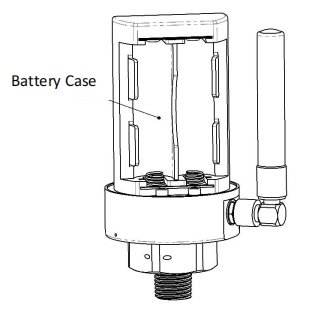

Figure 2: Schematic Diagram of Switch	Figure 3: Schematic Diagram of Electrical Connection

Open the enclosure, then you will see the switch (Figure 2):

Switch : It employs a mechanical switch. Sliding this switch left or right can control the circuit's on/off state.

Electrical Connection (Figure 3):

The top is the positive pole, and the bottom is the negative pole. It can accommodate two AA batteries inserted in the same orientation.

3. Technical Specifications
