GY10C-S Diffuse Reflection Type in Change Photoelectric Sensor
key word:
Hotline:
Description
Introduction
This is a reflective sensor that can detect a variety of artifacts and is not restricted by the installation site. With TOF and self-sensing lC, it can be installed in a variety of scenarios. In addition, the detection performance is more reliable and easier to use. lt is a new upgrade of the universal laser sensor.
Features
Ultra-high detection performance
Reduce sensor assembly time to ultra-short
Setting for ultra-long distance away from the production line
Specification
|
ltem name |
Technical parameters |
||
|
GY10C-S |
GY10C-S-MN |
GY10C-S-485 |
|
|
Laser light source |
Laser diode 650nm,<1.3mW |
||
|
Laser rating |
Class 2 |
||
|
Ranging frequency |
|
>1KHz |
|
|
Working distance |
50-5000mm |
||
|
Response time |
1ms |
||
|
Absolute precision |
±50mm |
||
|
Repeat accuracy |
±5mm |
||
|
Operating voltage |
9-30V |
18-30V |
9-30V |
|
Interfaces |
PNP &NPN |
4-20mA |
RS-485 |
|
Load limit |
|
≤500Ω@24V |
|
|
Power consumption |
<1W(No output) |
||
|
Weight |
85g |
||
|
Dimensions |
41mm x37.5mm x23mm |
||
|
Class of protection |
IP67 |
||
|
Working environment temperature |
-20~55℃(non-freezing) |
||
|
Working ambient humidity |
35~85%RH(non-condensing) |
||
|
Storage ambient temperature |
-40℃-+85℃ |
||
|
Resistance to ambient light |
Light surface illumination incandescent lamp 1m distance>10000Lux,5m distance>3000Lux |
||

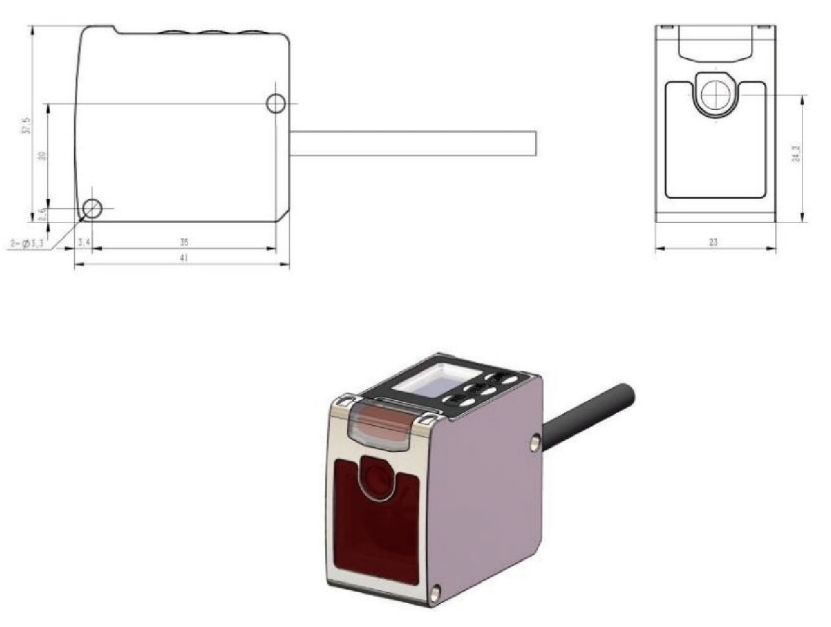

Outline structure (Unit:mm)
|
Model number |
GY10C-S |
GY10C-S-MN |
GY10C-S-485 |
|
Wave length |
905nm |
||
|
Laser power |
<0.4mW |
||
|
Pulse width |
<2ns |
||
|
Laser grade |
Class 1 |
||
