MB300 Universal Pressure Transmitter
key word:
Hotline:
Description
Features
· Stainless steel construction; optional pressure port; Optional Output signal; Various outline structures,accepting custom design;
· Reversed-polarity,transient current & voltage protection, which Conform to EMl standard;
· High precision, anti-vibration;
· Protection lP67;
· Strong anti-interference ability, perfect long-term stability
Introduction
MB300 Universal Pressure Transmitter adopts piezoresistive pressure sensor with isolated stainless steel diaphragm assensing element inside, The inlaying circuits transform milivolt signal into standard voltage, current and freguency signal. hcan connect to computers and controling instruments directly, and be chronically used in severe environment. MB300provides a variety of pressure ranges and electrical interfaces, which has high anti-vibration and impact resistance.Widely used in process control field of petroleum, chemical industry, pumps and compressors, general machinery, hydrau.ic/pneumatic systems, power, boiler, natural gas etc.
Specification
|
Pressure Type |
Gauge pressure,Absolute pressure,Sealed gauge |
|
Measuring Medium |
Liquid, gas, vapor, which are compatible with SUS304 |
|
Pressure range(MPa) |
-0.1 1 1.6 6 10 20 40 60 or customized |
|
Pressure range (bar) |
-1 10 16 60 100 200 400 600 or customized |
|
Pressure range (psi) |
-14.5 300 700 900 2k 4k 8k or customized |
|
Overload range |
200%FS |
|
Bursting pressure |
300%FS |
|
Power Supply |
(9～36)VDC, (9～36)VDC, (9～36)VDC |
|
Output signal |
(0～5)V, (1～5)V, (4～20)mA |
|
Transmitting |
2-wires, 3-wires, 3-wires, |
|
Load |
≤(U-15)/0.02Ω, >100k, >100k |
|
Vibration |
10～500Hz 25g |
|
Shock resistance |
50g 11ms |
|
Accuracy |
±0.5%FS(typ.) @25℃ |
|
Zero temp.drift |
±0.03%FS/℃ |
|
FS temp.drift |
±0.03%FS/℃ |
|
Long-term stability |
±0.2%FS/Y |
|
Insulation resistance |
250 MΩ/250V,100MQ/250V |
|
Medium temp. |
(-40～125)℃ |
|
Ambient temp. |
(-40～85)℃ |
|
Storage temp. |
(-40～125)℃ |
|
Compensated temp |
(-10～80)℃ |
|
Housing |
SUS304 |
|
Diaphragm |
SS316L |
|
O-ring |
Viton |
|
Protection |
IP67 |
Outline Construction (Unit:mm)
|
1.Hirschman |

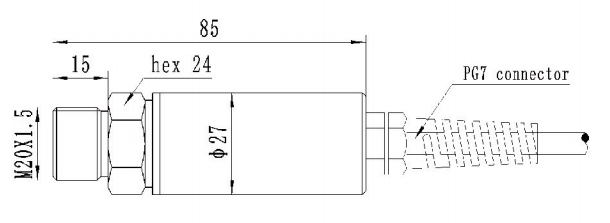

2.PG7 |
 |
 |
|
Widely used in air compressor,Pump,medic etc. |
Waterproof,IP65.Widely used in hydraulic,presswind,power etc. |
|
3.Aviation connector |
4.Cable directly |
 |
 |
|
Widely used in aeronautical equipment,etc. |
Waterproof,IP68.Widely used in Shipping,Oil and Chemical industry |
Electrical connection
Cable connection wiring
|
Color |
2-wires |
3-wires |
|
Red |
+V |
+V |
|
Yellow |
OV/+OUT |
GND |
|
Green |
Null |
+OUT |

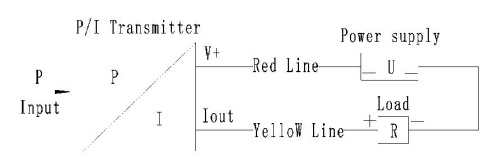

| 2-wires,4~20mA output | 3-wires,0~5V,1~5V output |
 |
 |
