GW200 Temperature Transducer
key word:
Hotline:
Description
Features
· High-strength stainless steel housing, impact resistant, high Pressure resistance
· High precision, good stability, good anti-interference ability
· Multiple connection modes, multiple output signals
· Customized structures are available.
Application
· Engineering machinery,cars
· Oil and Chermical industry、
· Automatic checkout industry
· Shipping,railway transportation
· Wind power generation
· Supply heating
· Hydraulic pressure,Air compressor and Pumps
Introduction
GW200 integrated temperature transmitter is composed oftemperature sensor, compensation circuit and switch circuitwhich is characterized by stability, high sensitivity and highreliability etc. The transmitter with all-welded construction andhigh-strength housing is widely used in automatic temperaturemeasure control system of petroleum machinery, chemicamachinery, pump and compressor, electricity, boiler, naturagas etc.
Specification
|
Measuring Medium |
The gas,liquid,or solid surface,which is compatible with1Cr18Ni9Ti stainless steel |
|
Temperature range |
-50℃~+300℃ |
|
Output signal |
4mA～20mA、1V~5V、0V~5V |
|
Accuracy |
0.5%FS |
|
Power Supply |
12VDC~36VDC |
|
Working temp. |
-40℃~85℃ |
|
Relative humidity |
5%～95% |
|
Long term stability |
0.2%FS/Y |
Outline structure
Universal structure
Used in universal industrial occasions and lab temperature meassurement.
Diameter of external protecting tube : Ф6mm
Length:20mm
1/4npt Thread

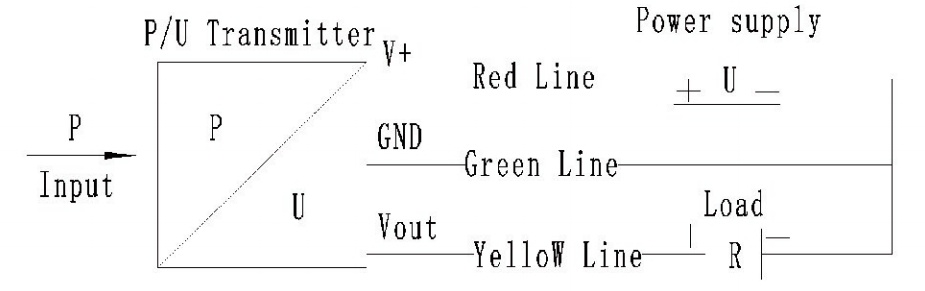

3-wires,0~5V or 1~5V output:
