KHU24 Float Switch Level Switch
key word:
Hotline:
Description
Application
· Used for oil tank level monitoring
· System water level monitoring
Features
High-strength stainless steel housing, impact resistant, high Pressure resistance
High precision, good stability, good anti-interference ability
Multiple connection modes, multiple output signals
Customized structures are available.
Specification
|
Liquid Level Height Range(mm) |
18~275 |
|
Dynamic liquid level height(mm)error |
50±5 |
|
Output Signal |
A pair of normally open/normally closed contact output,contact |
|
capacity DC24V/200mA,contact resistance is not greater than 0.5Ω |
|
|
when the contact is switched on,the leakage resistance is not less |
|
|
than 100kΩ once the contact is disconnected. |
|
|
Function |
When the liquid level rises or falls to the operating liquid level height |
|
of the switch,the normally open contact is switched on,and the normally |
|
|
closed contact is disconnected |

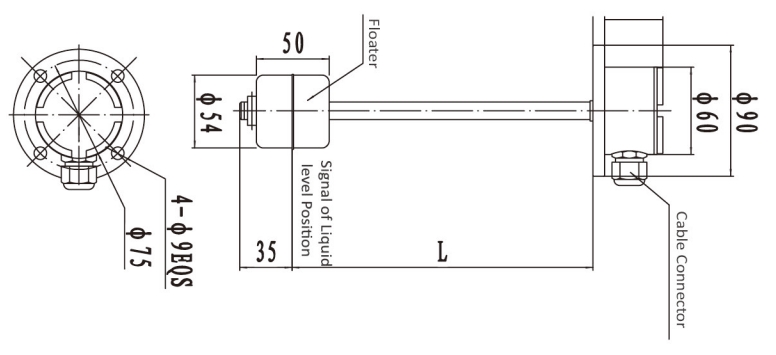

Outline structure(Unit:mm)
