DS12G Moncrystal Silicon 316L Stainless Steel Housing Pressure Sensor
key word:
Hotline:
Description
Introduction
DS12G monocrystalline silicon pressure sensor module adopts highstability chip imported from Germany with high precision, high stabilityand other characteristics. lt has preset signal processing module, andstatic pressure and temperature compensation with 0.075% measure-ment accuracy.
Features
High precision 0.075%.
High stability.
Intelligent static pressure compensation.
Intelligent temperature compensation.
General measurement of positive and negative pressure.
Excellent overload performance
Germany Monocrystalline silicon chip
316L stainless steel all-welded structure
Suitable for the mainstream threaded shell in the market

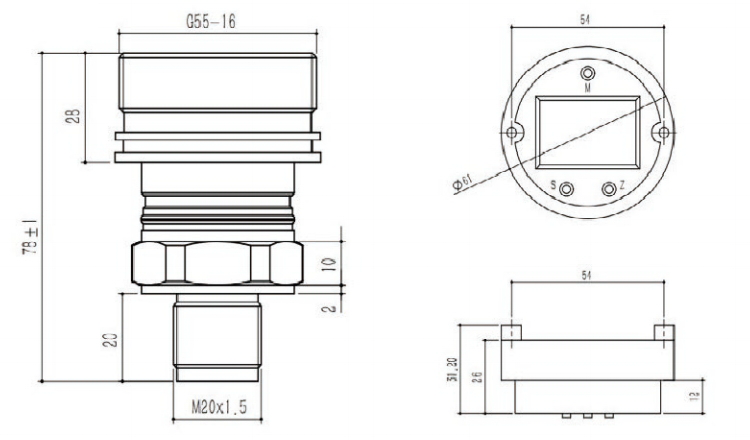

Outline structure(Unit:mm)
| (1) Product shape |
(2) Electrical connection ① Power interface; ② monocrystalline silicon sensor interface. |
 |
 |
Specification
|
Power supply |
11~36V |
Whole Temperature Zone Accuracy |
0.075%FS |
|
Electrical Connection |
Silicone Conductor |
Position effect |
Horizontal and vertical positions |
|
Bridge resistance |
6KQ±0.5KQ |
Overpressure effect |
<0.05%FS/10Mpa |
|
Response time |
≤10ms |
stability |
≤0.03%FS/year |
|
nsulation resistance |
500MQ/500VDC |
Power effect |
<0.005%FS/V |
|
Operating temperature |
-40~+85℃ |
repeatability |
<±0.05%F.S. |
|
Storage temperature |
-50~+125℃ |
Protocol lag |
<±0.05%F.S. |
|
Sensor output |
4-20mA DC+HART Protocol |
Diaphragm material |
316L/Hastelloy C |
|
Process connection |
216/16UNS External thread |
junction box connection |
M27×2 External thread |
|
M20*1.5 External thread |
