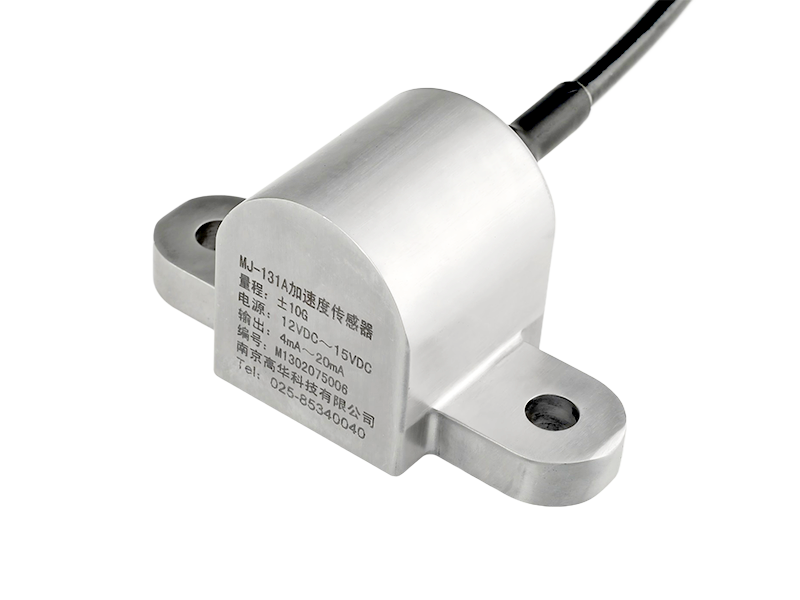

MJ Railway Vehicles Acceleration Sensor
key word:
Hotline:
Description
Characteristics
· Good anti-impact and anti-vibration ability
· Various outline structure
· IP68
Introduction
MJ Acceleration transducer senses X axis acceleration signal, converted into a standard 4~20mA.signal output. The transducer adopts high accuracy capacitive accelerometer as the sensitve element, it can be used to measure the unilaxlal acceleration of the moving object,e.g.high speed railway vehicles, vessels, aircraft etc.
Specification
· Powersupply:9~32VDC
· Measuringrange:±2g，±10g，±30g，±50g，±100gm
· Output signal: 4~20mA
· Accuracy: ≤1%FS
· Power consumption:≤20mA
· Operation temperature:-55~85 C
· Insulated resistance: ≥220MΩ/50VDC(Under normal temperature and humidity)

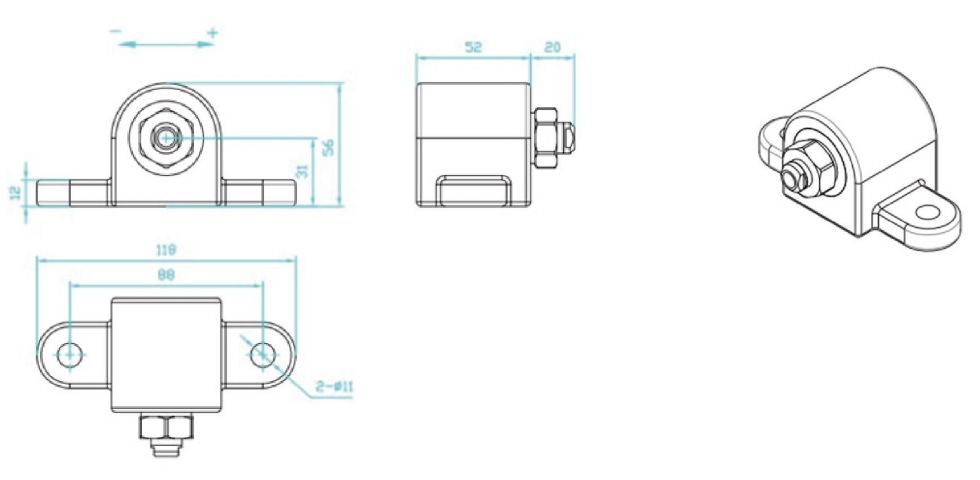

Outline structure(Unit:mm)
