DTD-60 Inclinometer Sensor
key word:
Hotline:
Description
Introduction
This product is a dual-axis tilt sensor specifically designed for industrial fieldcontrol applications. lt incorporates the latest MEMS production process tilt unitand a high-precision differential converter, With a multi-stage filtering algorithm,the sensor is capable of accurately measuring the tilt and pitch angles relative tothe horizontal attitude.

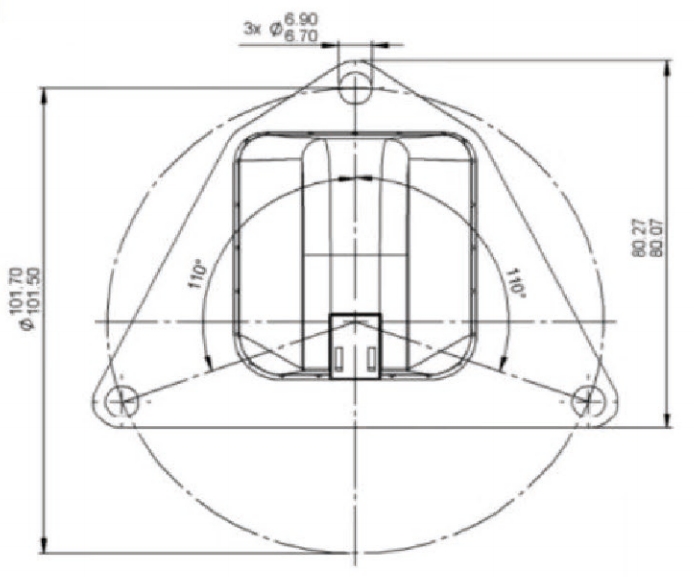

Outline structure(Unit:mm)
Specification
|
Measurement Angle |
Two Axes,Each Axis Is 30° |
|
Power Supply Voltage |
6-48Vdc |
|
Power Supply Current |
<40ma for 12Vdc Power Supply |
|
Source Reverse Protection |
Up to -48Vdc |
|
Overvoltage Protection |
Up to 60Vdc |
|
Resolution |
Up to 60Vdc |
|
Output Noise |
2bit |
|
Output |
CANJ1939,Source Address OXE2 Baud Rate 250Kbit/S Frame Rate 100ms |
|
Repetition Accuracy |
≤2%Of Full Stroke |
|
Linearity |
<+1.80% |
|
Maximum Measurement Speed |
250°/S |
|
Weight |
150g |
|
Operating Temperature |
-40°℃~+85℃ |
|
Protection Level |
IP67 |
|
Temperature drift |
<0.75° |
