GWZ-100 Vibration Temperature Sensor
key word:
Hotline:
Description
Product application
The safety temperature vibration sensor for mining is widely used in coal minecoal mining industry fans, pumps, compressors, retarders, vibrating screens andother rotating machinery and other equipment to measure vibration andtemperature.
Product characteristics
This product is a two-wire vibration and temperature sensor. Vibration, tempera-ture output independent 4~20mA signal at the same time, can directly communi-cate with PLC/acquisition system and other controllers.
Specification
|
Vibration parameter |
|
|
Working voltage |
DC24V(fluctuation range DC12V-DC30V) |
|
Working current |
≤25mA |
|
Measuring range |
0-50mm/s(effective value of vibration speed) |
|
Output signal |
4~20mA(two-wire current type,load impedance is not more than 250Q) |
|
Measurement error |
≤5% |
|
Frequency response range |
10~1000Hz(Earth 1dB) |
|
Temperature parameter |
|
|
Working voltage |
DC24V(fluctuation range DC12V-DC30V) |
|
Working current |
≤25mA |
|
Measuring range |
-20℃-100℃ |
|
Output signal |
4~20mA(two-wire current type,load impedance is not more than 250Q) |
|
Measurement error |
≤5% |

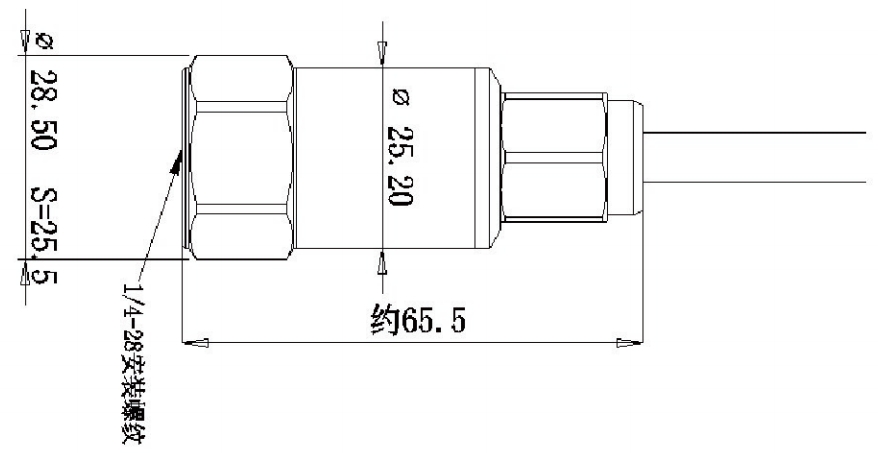

Outline structure(Unit:mm)
