GUY Magnetostrictive Displacement Sensor
key word:
Hotline:
Description
Feature
Fully enclosed electronic warehouse, strong anti-interference ability
Supports multi-liquid level synchronous detection
High precision, high resolution and good stability
Non-contact measurement, no wear, long service life
Fast response, linear measurement,absolute position output
High protection level
Introduction
Products using the principle of magnetostriction external installation mode, can be used for fuel tanks, oil tanks, watertanks, boilers and other need to measure the height of the liquid level. High measuring accuracy, strong anti-interferenceability, fully sealed non-sharp steel housing. Real-time monitoring of liguid phase/interface height or continuous level height.
Specification
|
Power Supply |
12V DC/24V DC |
|
Shell Material |
Aluminum Alloy |
|
Range Of Displacement |
100mm～5000mm |
|
Output Signal |
Analog voltage/analog current/RS485 |
|
Resolution |
16bit DA/Up to 0.5um |
|
Nonlinearity |
≤±0.05%F.S. |
|
Repeatability |
≤±0.002%F.S. |
|
Operating Temperature |
-40℃~85℃ |
|
Case Protection Class |
IP68 |

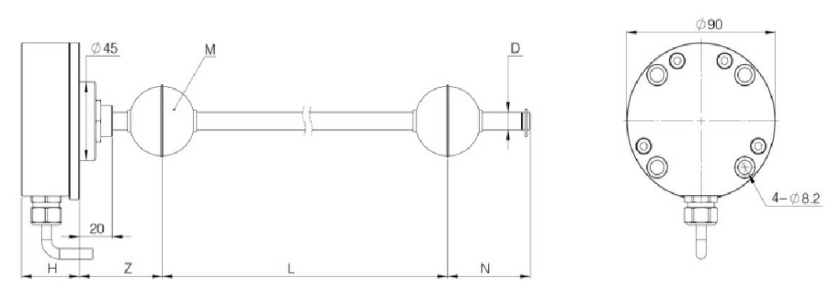

Outline structure(Unit:mm)
|
Mark |
Meaning |
Analog output |
Digital output |
|
H |
Electronic chamber height |
35mm |
|
|
Z |
The cephalic blind area |
50mm |
|
|
L |
Optional range |
100mm～5000mm |
|
|
N |
Terminal blind |
50mm |
|
|
D |
Rod diameter |
10mm |
|
|
M |
Float specification |
Optional Output |
|
