GUC Hydraulic Cylinder Stroke Sensor
key word:
Hotline:
Description
Introduction
The GUC1000 Series mine flameproof displacement transmitter complies withthe requirements of MT209-1990 and this standard and is manufactured inaccordance with the technical documents and drawings approved by theprescribed procedures and the national authorized inspection unit.
The product has reasonable structure design, accurate detection, stable perfor.mance and easy installation and maintenance. Suitable for coal mine with coadust, gas explosion danger places, for coal mine hydraulic support electro-hy-draulic control system displacement measurement and automatic control. Highmeasurement accuracy, strong anti-interference ability, the appearance of thefully sealed stainless steel structure, can meet the moisture, explosion-proofanti-corrosion, dust and other harsh working conditions requirements, canreal-time monitoring of the displacement of coal mine hydraulic support, coalmine hydraulic support electro-hydraulic control system pressure measurementand automatic control.
Explosion-proof type: Mine explosion-proof type
Model and its meaning
Specification
|
Working Voltage |
24V (-15%~20%) |
|
Working Current |
Less Than 80ma |
|
Measuring Range |
0~1000mm |
|
Output Format |
1 to 5VDC |
|
Repeatability |
≤±0.001%FS |
|
Resolution |
16 Bits/Up To 5um |
|
Frequency Response Time |
1~5ms(Depending On Rod Length)(Measurement Frequency:1KHZ) |
|
Blind Area |
Head Blind Area,42mm;Terminal Blind Area,30mm; |
|
Protection Level |
IP67 |
|
Ambient Temperature |
-25℃~+70℃ |
|
Atmospheric Pressure |
80kpa~110kpa |
|
Working Environment Pressure |
40mpa Withstand Pressure:Not Less Than 60mpa |
|
Vibration |
50m/S2(5g) |
|
Impact |
500m/S2(50g) |

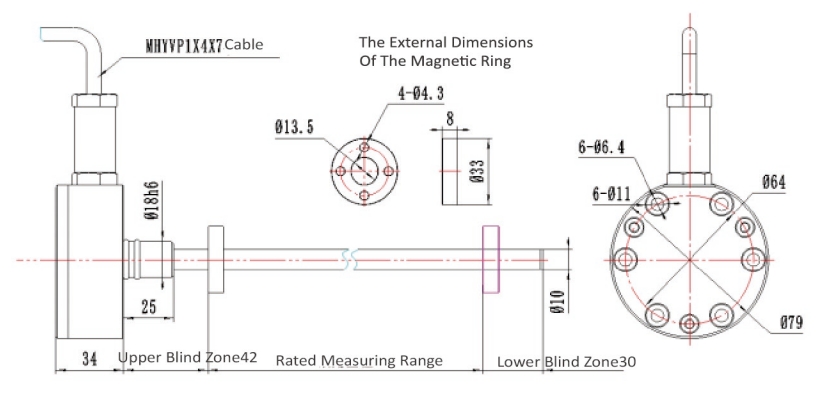

Outline structure(Unit:mm)
Overall dimensions (diameter X length): ф79mmx1106mm(Figure 1);
Weight: about 1.5kg.
Working Principle
The transmitter generates a pulsed magnetic feld by emitting a pulsed current along the waveguide. When this magnetic feld intersects with the magnetic feld generated by a moving magnet near the waveguide, a strain puise (or wave.guide distortion) is produced due to the magnetostrictive effect. The strain pulse travels back along the waveguide andis received by the circuitry. By calculating the time difference between the emitted pulse and the echo signal through thecircuitry, the position of the moving magnet can be accurately fed back, This process is continuous, so whenever themoving magnet is moved, its new position can be quickly detected.
Electrical performance
(1)Power supply
a) Rated working voltage: DC 24V;
b) Working current 50mA;
(2)Measuring range: 0~1000 mm;
(3)Basic error +3mm;
(4)Signal system:1 voltage signal output, DC1V~5V (linear corresponding 0~1000 mm)
(5)Function: The transmitter can convert thedisplacement into a voltage signal output.
