GSH Rotational Speed Sensor
key word:
Hotline:
Description
Introduction
The GSH1500 sensor utilizes a highly reliable dual-channel self-adjusting Hallgear sensor, triggered by magnetically conductive material gears, to output asquare wave frequency multiplication signal. The product's exterior adopts afully sealed stainless steel structure, capable of meeting harsh working condi-tions such as moisture, explosion, corrosion, and dust resistance. lt is suitable forunderground coal mine environments with coal dust and gas explosion hazards.Explosion-proof type: Mine-used intrinsically safe type; Explosion-proof mark:ExiblMb.Explosion-proof mark : Ex dlMb.

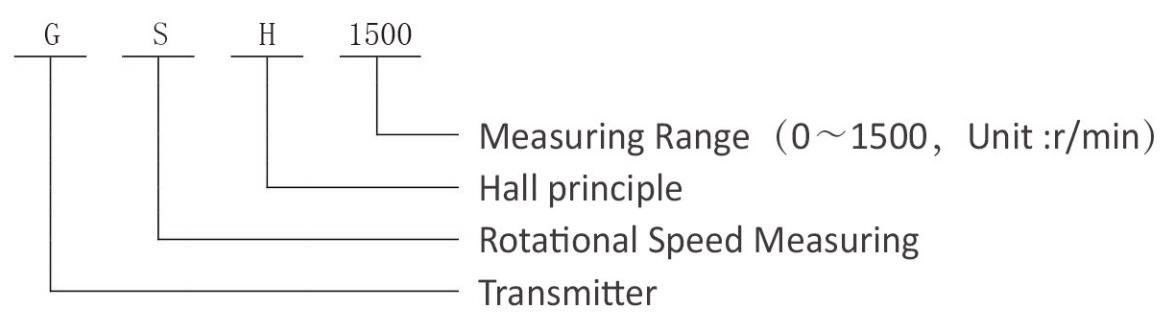

Model and its meaning
Specification
|
Operating Power Supply |
12VDC(powered through an isolated safety barrier) |
|
Power Consumption |
≤20mA |
|
Measurement Range |
5~1500r/min (high-speed disk) |
|
Measurement Distance |
0.3mm~2mm |
|
Pulse Output |
The sensor emits a frequency-multiplied signalwith anamplitudeof5VDC(not less than 4.5V)foreverygear detected |
|
Direction Signal |
Forwardrotation output voltageis5VDC(not less than4.5V),reverse rotationoutput voltageisOVDC(notmore than1V) |
|
Missing Gear Teeth |
≤±0.5%FS |
|
Protection Function |
The sensor has short-circuit protection,transient overvoltage protection,and reverse polarity protection |
|
Temperature Measurement Range |
-20℃~100℃ (corresponding to 0.50V-->4.50V) |
|
Operating Ambient Temperature |
-20℃~60℃ |
|
Operating Ambient Humidity |
Not more than 95%(+25C) |
|
Enclosure Protection Level |
IP68 |
|
|
a)Sensor rotating in the forward direction(clockwise):DC:2.5V~4.5V(linearly corresponding to0~1500r/min) |
Outline structure (Unit:mm)
