BS12 Multi-Mode Series Piezoresistive Silicon Pressure Sensor
key word:
Hotline:
Description
Introduction
BS12 series provides customers with a variety of shape structure productsWhile maintaining the performance of the original product, it is alsosuitable for a variety of application scenarios

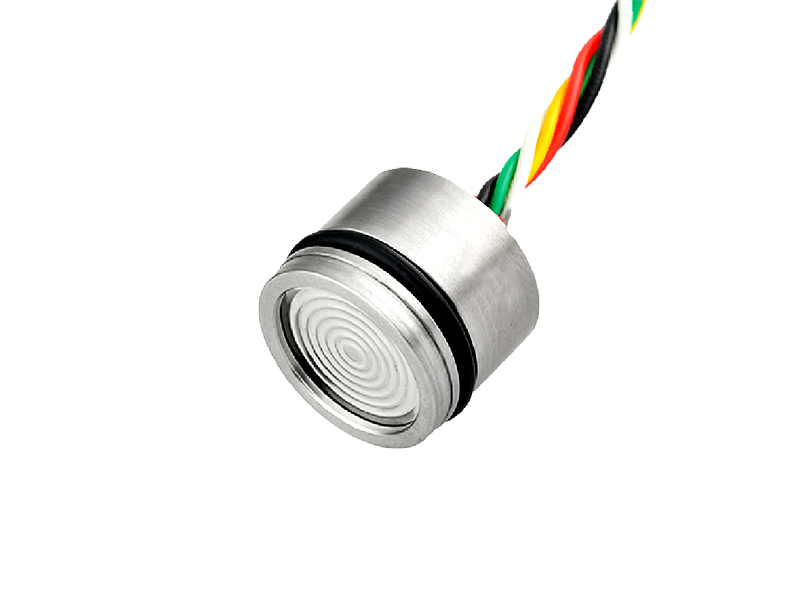

BS12 Flush Type Pressure Sensor
|
|
Pressure Range |
35KPa～700KPa |
|
|
Pressure Type |
Gauge Pressure,Absolute Pressure, Sealed Gauge Pressure |
||
|
Output |
mV /0.5～4.5V |
||
|
Typical Application |
Food,Biochemistry,Pressure Transmitters, Penetration Meters,Medical Systems, |

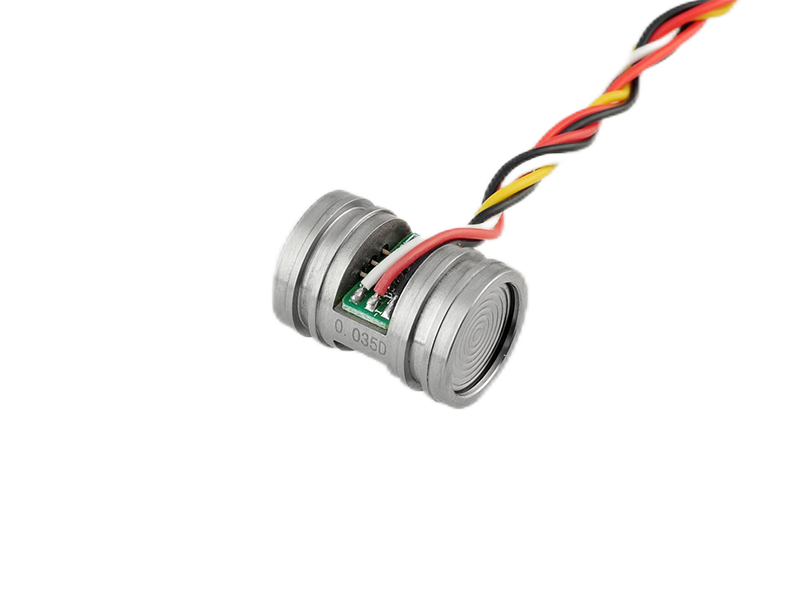

BS12D Differential Pressure Sensor
|
|
Pressure Range |
35KPa～2MPa |
|
|
Pressure Type |
Differential Pressure |
||
|
Output |
mV |
||
|
Typical Application |
Pressure Tank Level, Flow Control,Pressure Transmitter,Filtration Equipment |

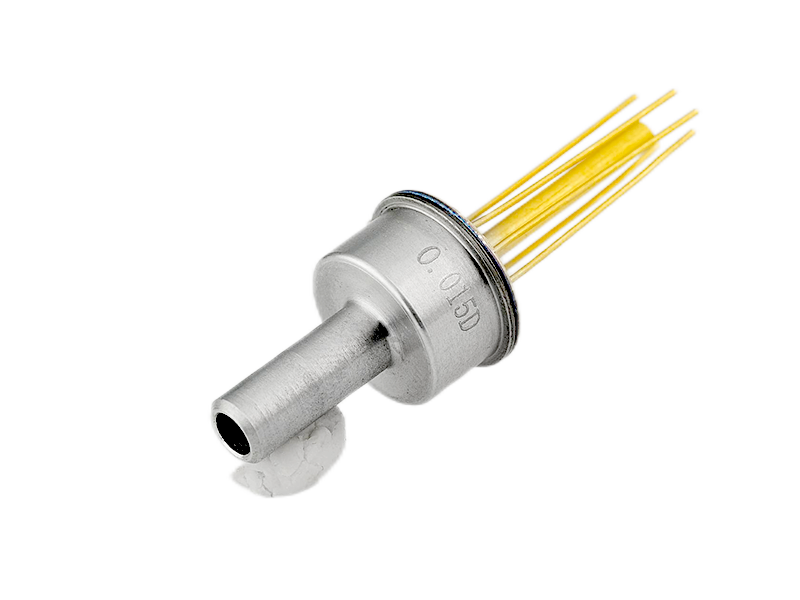

T0 Simplified Silicon PiezoresistivePressure Sensor
|
|
Pressure Range |
35KPa～700KPa |
|
|
Pressure Type |
Gauge Pressure,Absolute Pressure, Differential Pressure |
||
|
Output |
mV |
||
|
Typical Application |
Automotive,Process ControlMedical Equipment, Barometer, |
BS12F Temperature-PressurePressure Sensor
|
|
Pressure Range |
17KPa～60MPa |
|
|
Pressure Type |
Gauge Pressure, Absolute Pressure,Sealed Gauge Pressure |
||
|
Output |
mV/Pt100 |
||
|
Typical Application |
Food, Biochemistry,Pressure Transmitters,Penetration Meters, Medical Systems,Liquid Level Systems |
BS12Z digital pressure Sensor
|
|
Pressure Range |
100KPa～10MPa |
|
|
Pressure Type |
Gauge Pressure, Absolute Pressure |
||
|
Output |
12C |
||
|
Typical Application |
Pressure Tank Level, Flow Control,Pressure Transmitter,Filtration Equipment |
