MB320 Miniaturized Pressure Transmitter
key word:
Hotline:
Description
Features
· Pressure range:-100kpa~0~2kpa...60Mpa;
· Output signal:0~5V,4~20mA,200~1000Hz;
· Small,easy installation,accepting OEM design;
· Stainless steel construction,pressure interface reliable
· High precision,high stability;
· Anti-vibration,anti-overload;
Introduction
MB320 Pressure Transducer adopts piezoresistive pressure sensor with isolated stainless steel diaphragm as sensing element inside. The inlaying circuits transform milivolt signal into standard voltage, current and frequency signal. lt can connect to computers and controlling instruments directly, and be chronically used in severe environment.
MB320 provides a variety of pressure ranges and electrical interfaces, which has high anti-vibration and impact resistance.
Application
· HVAC and refrigeration
· Engineering machinery、engine control
· Compressor、hydraulic equipment
· Energy and water treatment
Specification
|
Pressure Type |
Gauge pressure,Absolute pressure,Sealed gauge |
|
Measuring Medium |
Liquid, gas, vapor, which are compatible with SUS304 |
|
Pressure range(MPa) |
-0.1 1 1.6 6 10 20 40 60 or customized |
|
Pressure range (bar) |
-1 10 16 60 100 200 400 600 or customized |
|
Pressure range (psi) |
-14.5 300 700 900 2k 4k 8k or customized |
|
Overload range |
200%FS |
|
Power Supply |
24VDC |
|
Output signal |
(0～5)V, (1～5)V, (4～20)mA, 200～1000Hz |
|
Transmitting |
2-wires, 3-wires, |
|
Load |
≤(U-15)/0.02Ω, >100k, >100k |
|
Vibration |
10～500Hz 25g |
|
Shock resistance |
50g 11ms |
|
Accuracy |
±0.25%, ±0.5%FS(typ.) |
|
Zero temp.drift |
±0.05%FS/℃ |
|
FS temp.drift |
±0.03%FS/℃ |
|
Long-term stability |
±0.2%FS/Y |
|
Insulation resistance |
250 MΩ/250V,100MΩ/250V |
|
Medium temp. |
(-40～125)℃ |
|
Ambient temp. |
(-20～85)℃ |
|
Storage temp. |
(-40～125)℃ |
|
Compensated temp |
(-10～80)℃ |
Outline Construction(Unit:mm)

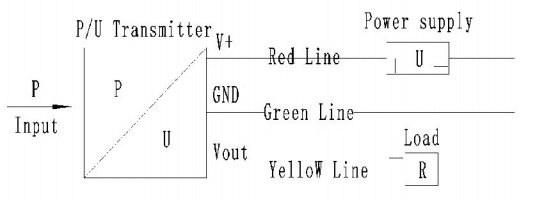

Electrical connection
Cable connection wiring
|
Color |
2-wires |
3-wires |
|
Red |
+V |
+V |
|
Yellow |
OV/+OUT |
GND |
|
Green |
Null |
+OUT |
| 2-wires,4~20mA output | 3-wires,0~5V,1~5V output |
 |
 |
