MB340 Silicon Sanitary Flush Pressure Transmitter
key word:
Hotline:
Description
Features
· Flush diaphragm structure,ease to clean;
· High precision,anti-impact
· Perfect long-term stability
· Various output signal,accepting custom design
Introduction
MB340 Flush Diaphragm Pressure Transmitter has an integrated stainless steel and flush diaphragm construction.Designed for food, medical, pharmaceutical industry etc, The inlaying circuits transform milivolt signal into standardvoltage, current and frequency signal. lt can connect to computers and controlling instruments directly, Widely used infood,medical,wine making,pharmaceutical industry etc.
Specification
|
Pressure Type |
Gauge pressure,Absolute pressure,Sealed gauge |
|
Measuring Medium |
Liquid, gas, vapor, which are compatible with SUS304 |
|
Pressure range(MPa) |
-0.1 1 1.6 6 10 20 40 60 or customized |
|
Pressure range (bar) |
-1 10 16 60 100 200 400 600 or customized |
|
Pressure range (psi) |
-14.5 300 700 900 2k 4k 8k or customized |
|
Overload range |
200%FS |
|
Bursting pressure |
300%FS |
|
Power Supply |
(12～36)VDC, (12～36)VDC, (12～36)VDC |
|
Output signal |
(0～5)V, (1～5)V, (4～20)mA |
|
Transmitting |
2-wires, 3-wires, 3-wires, |
|
Load |
≤(U-15)/0.02Ω, >100k, >100k |
|
Vibration |
10～500Hz 25g |
|
Shock resistance |
50g 11ms |
|
Accuracy |
±0.5%FS(typ.) @25℃ |
|
Zero temp.drift |
±0.03%FS/℃ |
|
FS temp.drift |
±0.03%FS/℃ |
|
Long-term stability |
±0.2%FS/Y |
|
Insulation resistance |
250 MΩ/250V,100MQ/250V |
|
Medium temp. |
(-40～125)℃ |
|
Ambient temp. |
(-40～85)℃ |
|
Storage temp. |
(-40～125)℃ |
|
Compensated temp |
(-10～80)℃ |
|
Housing |
SUS304 |
|
Diaphragm |
SS316L |
Outline structure (Unit:mm)
 |
 |

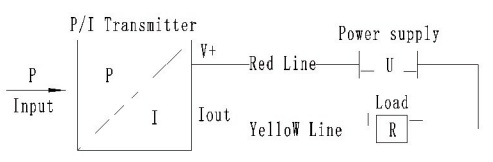

Electrical connection
Cable connection wiring
|
Color |
2-wires |
3-wires |
|
Red |
+V |
+V |
|
Yellow |
OV/+OUT |
GND |
|
Green |
Null |
+OUT |
| 2-wires,4~20mA output | 3-wires,0~5V,1~5V output |
 |
 |
