MB400 2088 Housing Industrial Pressure Transmitter
key word:
Hotline:
Description
Features
LCD and LED indicator optional;
Reverse signal polarity, moment overcurrent, overvoltage and Interference protection;
Anti-lightning, Anti-jamming;
Optional signal output;
Customized design is acceptable.
Introduction
MB400 industrial Pressure Transmitter adopts piezoresistive OEl all-welded pressure sensor as a sensing element and the amplifer circuit transforms sensor signal into standard output signal. Through long-term aging and stability testing, its performance is stable and reliable.
Widely used in process control feld of petroleum, chemical industry, metallurgy, engineering machinery, hydraulic/pneumatic systems, power, boiler, automatic checkout system, shipping, ralway transportation, natural gas etc.
Specification
|
Pressure Type |
Gauge pressure,Absolute pressure,Sealed gauge pressure |
|
Measuring Medium |
Liquid, gas, vapor, which are compatible with SUS304 |
|
Pressure range(MPa) |
-0.1 1 1.6 6 10 20 40 60 or customized |
|
Pressure range (bar) |
-1 10 16 60 100 200 400 600 or customized |
|
Pressure range (psi) |
-14.5 300 700 900 2k 4k 8k or customized |
|
Overload range |
200%FS |
|
Bursting pressure |
300%FS |
|
Power Supply |
(9～36)VDC |
|
Output signal |
(0～5)V, (1～5)V, (4～20)mA |
|
Transmitting |
2-wires, 3-wires, 3-wires, |
|
Load |
≤(U-15)/0.02Ω, >100k, >100k |
|
Vibration |
10～500Hz 25g |
|
Shock resistance |
50g 11ms |
|
Accuracy |
±0.5%FS |
|
Zero temp.drift |
±0.03%FS/℃ |
|
FS temp.drift |
±0.03%FS/℃ |
|
Long-term stability |
±0.2%FS/Y |
|
Insulation resistance |
250 MΩ/250V |
|
Medium temp. |
(-40～125)℃ |
|
Ambient temp. |
(-40～80)℃ |
|
Storage temp. |
(-40～125)℃ |
|
Compensated temp |
(-10～70)℃ |
|
Housing |
SUS304 |
|
Diaphragm |
SS316L |
|
O-ring |
Viton |
|
Protection |
IP67 |

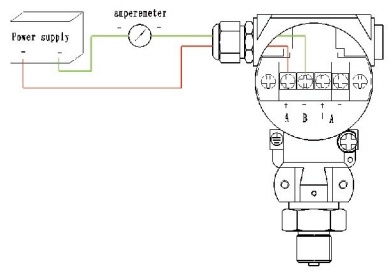

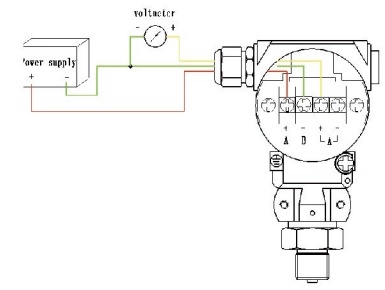

Electrical connection
 |
 |
| 2-wires、4~20mA output: | 3-wires、0~5V or 1~5V output: |

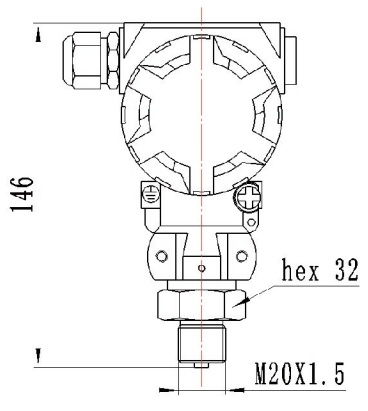

Outline structure(Unit:mm)
 |
 |
